D10 SMΔRT

Meters per Minute

1000

Max Gate Weight (Kg)

250k

Life Cycle

1500

Remotes Storage

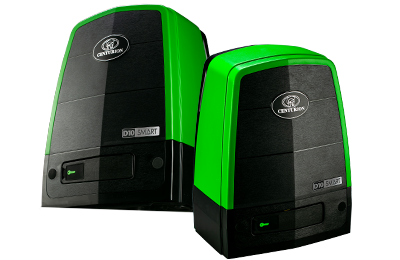

D10 SMΔRT: SMΔRT Strength, Relentless Power

Designed for Heavy Daily Use

The D10 SMΔRT is built to handle the demands of busy sites and heavy gates weighing up to 1000kg, performing up to 750 operations per day, and boasting a rugged die-cast aluminum gearbox built to withstand even the most demanding operating conditions.

Whether for a commercial property or industrial facility, you can rely on its performance to keep your gates moving smoothly all day, every day.

When it comes to automating large commercial or industrial gates, the D10 SMΔRT delivers the power, security, and convenience you need for high-traffic environments.

Application: Commercial/Industrial gates weighing up to 1000kg

Features

Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
SMART hardware and SMART connectivity provide the best experience for installers
Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
More space and dedicated accessory tray for complementary solutions such as GSM devices
World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
Uncompromising security, uninterrupted convenience with 24V battery backup
Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
Accurate and safe position control incorporating reliable Hall Effect technology
Improved wire routing
SMART universal controller – compatible with all CENTURION SMART solutions

Technical Specifications

	Centurion D10-SMART Sliding Gate Motor
	Input voltage	90V – 240V AC +/-10% @ 50Hz 1
	Current consumption (Mains)	250mA
	Battery charger current output	1.8A @ 27.4V +/-1%
	Maximum number of operations per day	750 3, 6, 7
	Duty cycle – Mains present 2, 3	45%
	Motor voltage	24V DC
	Motor power supply	Battery-driven (Standard Capacity – 2x 12V 7.2Ah)
	Current consumption (motor at rated load)	8A
	Input / Output sink currents (Max accessory current draw)
	I/O 1-4	100mA (12/24V)
	I/O 5 and 6	3A (12/24V) 10sec Pulse
	Motor push force – starting	40Kgf
	Motor push force – rated	30Kgf
	Gate mass – maximum	1000Kg
	Gate length – maximum	50m
	Gate speed (varies with load) 4	Up to 26m/min 4
	Manual Override	Lockable with key release
	Drive Pinion	17T Module 4
	Operations in standby with 2x 7Ah batteries	Power saving (15m/min 15kgf) Normal (26m/min 15kgf)
	Half day 2, 5, 6	118 \| 63
	Full day 2, 5, 6	93 \| 50
	Collision Sensing	Electronic
	Operating temperature range	-15°C to +50°C
	Onboard receiver type	Code-hopping multichannel receiver with selective add and delete
	Receiver code storage capacity	1500 Remotes 7
	Receiver frequency	433.92MHz
	Degree of protection	IP54
	Mass of unit packed (with standard kit, but excl. rack and battery)	13Kg
	Packaging dimensions (with standard kit, but excl. rack and battery)	350mm wide x 282mm deep x 470mm high

Can operate off a solar supply, consult your local dealer for assistance
Based on 25°C ambient temperature and unit not in direct sunlight
Based on a motor push force of less than 50% of rated (Starting and Running forces)
Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
Can increase battery capacity for longer standby times
Based on 4m gate, excluding all accessories
Multiple buttons per remote can be used
Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
24Months Warranty Support
Installations At a fee
Spare parts Available
