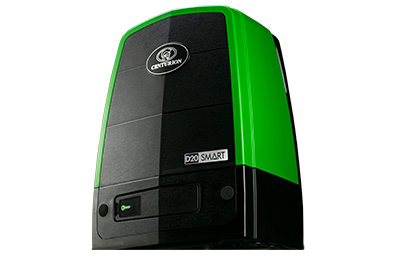

D20 SMΔRT: Ultimate Power, SMΔRT Precision

For industrial and commercial sites requiring unmatched power and durability, the D20 SMΔRT is your perfect solution.

Built to handle the heaviest gates in the most demanding environments, this gate motor delivers strength, security, and convenience.

Application: Commercial/Industrial gates weighing up to 2000kg.

Input voltage	90V – 240V AC +/-10% @ 50Hz 1
Current consumption (Mains)	250mA
Battery charger current output	1.8A @ 27.4V +/-1%
Maximum number of operations per day	750. 2, 5
Duty cycle – Mains present 2, 3	45%
Motor voltage	24V DC
Motor power supply	Battery-driven (Standard Capacity – 2x 7.2Ah)3
Current consumption (motor at rated load)	9A
Input / Output sink currents (Max accessory current draw)
I/O 1-4	100mA (12/24V)
I/O 5 and 6	3A (12/24V) 10sec Pulse
Motor push force – starting	52kgf
Motor push force – rated	39kgf
Gate mass – maximum	2000kg
Gate length – maximum	25m
Gate speed (varies with load) 2, 5	Up to 18m/min 3
Manual Override	Lockable lever with key release
Drive Pinion	13T Module 4
Operations in standby with 2x 7.2Ah batteries	Power Saving (15m/min 20kgf) \| Normal (18m/min 20kgf)
Half day 2, 3, 4	101 \| 55
Full day 2, 3, 4	80 \| 45
Collision Sensing	Electronic
Operating temperature range	-15°C to +50°C
Onboard receiver type	CENTURION rolling code (Keelog encryption) multichannel
Receiver code storage capacity	1500 Remotes6
Receiver frequency	433.92MHz
Degree of protection	IP54
Mass of unit packed (with standard kit, but excl. rack and battery)	13Kg
Packaging dimensions (with standard kit, but excl. rack and battery)	350mm wide x 282mm deep x 470mm high

Can operate off a solar supply
Based on 25°C ambient temperature and unit not in direct sunlight
Based on a motor push force of less than 50% of rated (Starting and Running forces)
Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
Can increase battery capacity for longer standby times
Based on 4m gate, excluding all accessories
Multiple buttons per remote can be used
