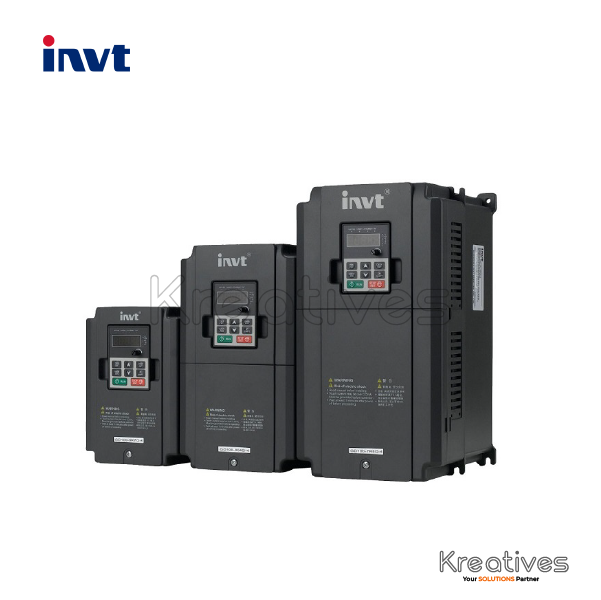

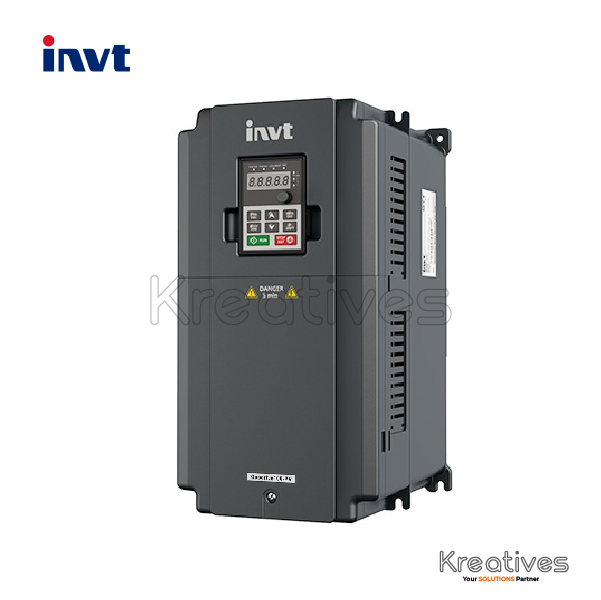

INVT 2.2Kw Solar Water Pump Inverter Single Phase Hybrid Sunverter
INVT Goodrive10 Mini fan series economic frequency inverters are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space (15% smaller than the counterparts) available.
• Reliability
• Compactness
• Easy to operate
• Multi-speed (16 speed)
• Integrated brake unit
• Removable panel
• PID controller
• 485 interface (Modbus)
• Built-in EMC filter (class C2)
• Removable panel
• Countrywide delivery
• 24Months Warranty
Call/WhatsApp with us Via +254 790 108845 | +254 716 842775
| Manufacturer: | INVT |
| Series: | GD 10 |
| Model: | GD10-2R2G-S2-B |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 2,2 |
| Current, А: | 11 |
| Main power supply, V: | 220 |
| Phase: | 1 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-3600 |
| Deceleration time, sec: | 0-3600 |
| EMC filter: | + |
| Braking unit: | + |
| Analog input: | 1 |
| Digital input: | 5/1 |
| Analog output: | 1 |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | + |
| PID: | PID – controller |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -30……+60 |
| Dimensions (W x H x D), mm: | 100x165x153,2 |
Call/WhatsApp with us Via +254 790 108845 | +254 716 842775
