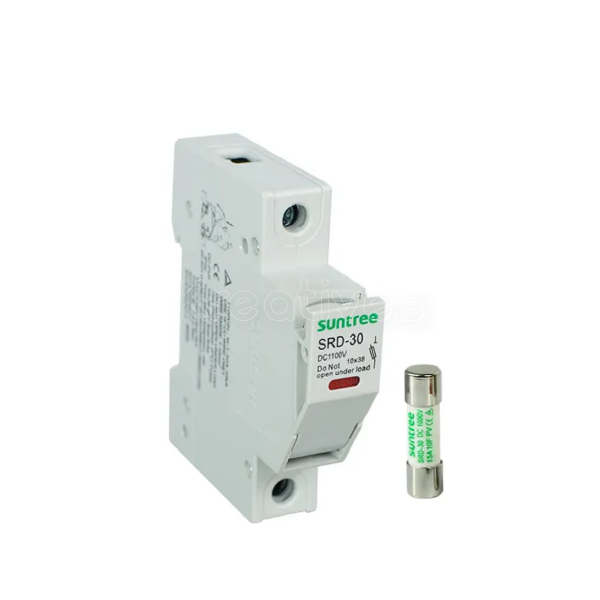

Suntree 16A Solar PV Fuse Overview

The Suntree 16A Solar PV Fuse (typically part of the SRD-30 series or similar) is a specialized DC fuse designed for photovoltaic (PV) systems. Manufactured by China Suntree Electric Group Co., Ltd., it's engineered to protect solar panel strings, combiner boxes, and inverters from overcurrents, short circuits, and faults like reverse currents or multi-array issues. These fuses are compact, reliable, and certified for high-voltage DC applications, making them ideal for residential, commercial, or off-grid solar setups in Kenya and beyond.

Key Specifications

• Model: SRD-30 (fuse link) or compatible holder; 10x38mm fuse size.
• Current Rating: 16A (available in variants like 15A, 20A, 30A, 32A).
• Voltage Rating: 1000V DC (some models up to 1500V DC).
• Breaking Capacity: Up to 33kA (high fault interruption).
• Operating Temperature: -20°C to +70°C (suitable for harsh Kenyan climates).
• Standards/Certifications: IEC, ROHS, CE; tested for PV-specific fault conditions.
• Dimensions: Compact for DIN rail mounting; holder supports 1P (single pole).
• Lifespan: Fast-acting with low power loss; durable ceramic or glass construction for weather resistance.
