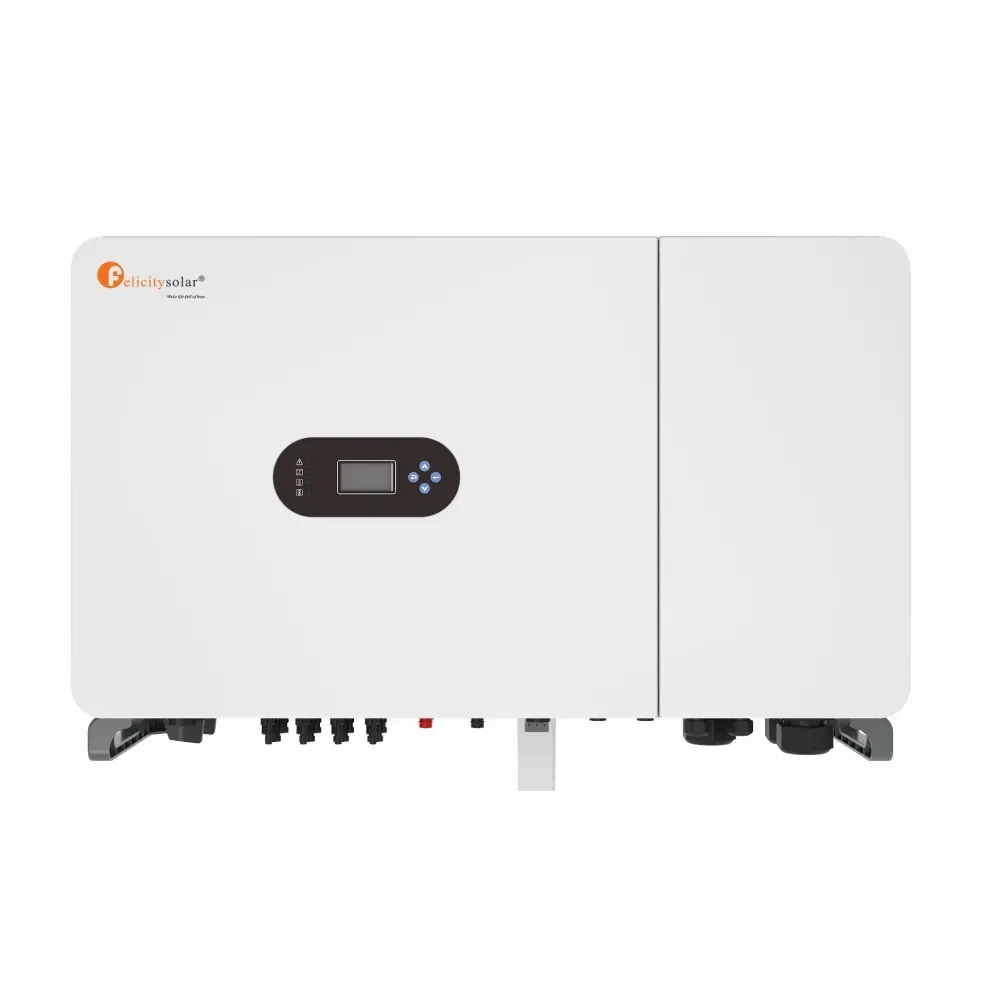

Felicity Solar 50kW 50kva High voltage Hybrid inverter Three phase Inverter - IVGM50KHP3G1
50kVA Felicity High Voltage Hybrid Inverter IVGM50KHP3G1 is a commercial- and industrial-grade three-phase solar power solution designed for large facilities, factories, estates, and institutions across Kenya. Built for on-grid, off-grid, and hybrid operation, it delivers stable, high-capacity three-phase power suitable for heavy and mission-critical electrical loads.
With a wide PV input voltage range of 250–850V DC per MPPT and 36A input current per MPPT, it supports very large solar arrays. Integrated WiFi monitoring enables real-time system visibility and diagnostics.
50KW hybrid inverter (three phase ) built in 4pcs 16.25kW MPPT
PV input voltage 250-850Vdc each port PV input current 36A+36A+36A+36A Battery input voltage 160-800Vdc
with wifi module
| Model | T-REX-50KHP3G01 |
| Battery Input Data | |
| Battery Voltage Range | 160~800Vd.c. |
| Max.Charging Current | 50+50(A) |
| Max.Discharging Current | 50+50(A) |
| Battery type | LFP(LiFePO4) |
| Numberof battery input | 2 |
| PV String Input Data | |
| Max.DC Input Power | 65 kW |
| Max.DC Input Voltage | 1000Vd.c |
| Min.DC Input Voltage | 150Vd.c. |
| Start-up Voltage | 250Vd.c |
| Rated DCInput Voltage | 600vd.c. |
| MPpT Range | 200~850Vd.c |
| FullLoad DCvoltage Range | 450~850Vd.c. |
| pVInput Current | 36+36+36+36(A) |
| Max.PV Isc | 55+55+55+55(A) |
| No.of MPP Trackers | 4 |
| No.of Strings perMPP Tracker | 2 |
| AC Output Data | |
| Rated AC Output Power | 50 kW |
| Max.AC Output Power | 55 kW |
| ACOutput Rated Current | 72.5A |
| Max.AC Current | 79.7A |
| Rated AC Voltage | 220/380,230/400Vac(-20%~+15%) |
| AC Wiring Mode | 3W+N+PE/3W+PE |
| Rated AC Frequency | 50/60Hz(45~55Hz/55~65Hz) |
| THDI | <3%(At Rated Power) |
| Power Factor | 0.8(leading)to0.8(lagging) |
| Efficiency | |
| Max.efficiency | 97.6% |
| Euro efficiency | 97.0% |
| MPPT efficiency | 99.9% |
| Protection | |
| pvInput Lightning Protection, | Integrated |
| pv string Input Reverse Polarity Protection, | |
| Battery Input Lightning Protection, | |
| Battery Input Reverse Polarity Protection, | |
| Insulation ResistorDetection | |
| Residual Current Monitoring Unit, | |
| Output OverCurrent Protection, | |
| Output Shorted Protection, | |
| Output OverVoltage Protection, | |
| Anti-islanding Protection, | |
| Acoutput Lightning Protectiono | |
| Certification and Standards | |
| Grid Regulation | NRS097-2-1,VDE4105,EN50549-1,AS 4777.2,GB/T34120,GB/T34133,GB/T34129 |
| Safety EMC/Standard | IEC/EN61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN62109-2 |
| General Data | |
| Operating temperature range | -25 to 60°C(>50Cderating) |
| Protection degree | P65 |
| Humidity | 0~95%(Nocondensation) |
| Cooling | Smart cooling |
| Altitude | 3000m(>2000mderating) |
| Communication with BMS | RS485,CAN |
| Monitormodule | WiFi/GPRS |
| Installation Style | Wall-mounted |
| Warranty[1] | 10 years |
| Net Weight(KG) | 85.6KG |
| Gross Weight(KG) | 98.4KG |
| Product Dimension(MM) | 940*340*582MM |
| Package Dimension(MM) | 463*770*1110MM |
